Bionet
CardioCare 2000 (12 Channel ECG)
Price on request
Pricing for medical instruments is provided per request. Add items to your quote list and request a tailored quotation.
Quantity
Add to wishlist
Share
SKU: PCMS-009Category: Patient Care Monitoring System
Nationwide deliveryOn orders across Bangladesh, 2–5 business days.
100% genuineGenuine products with manufacturer warranty.
Overview

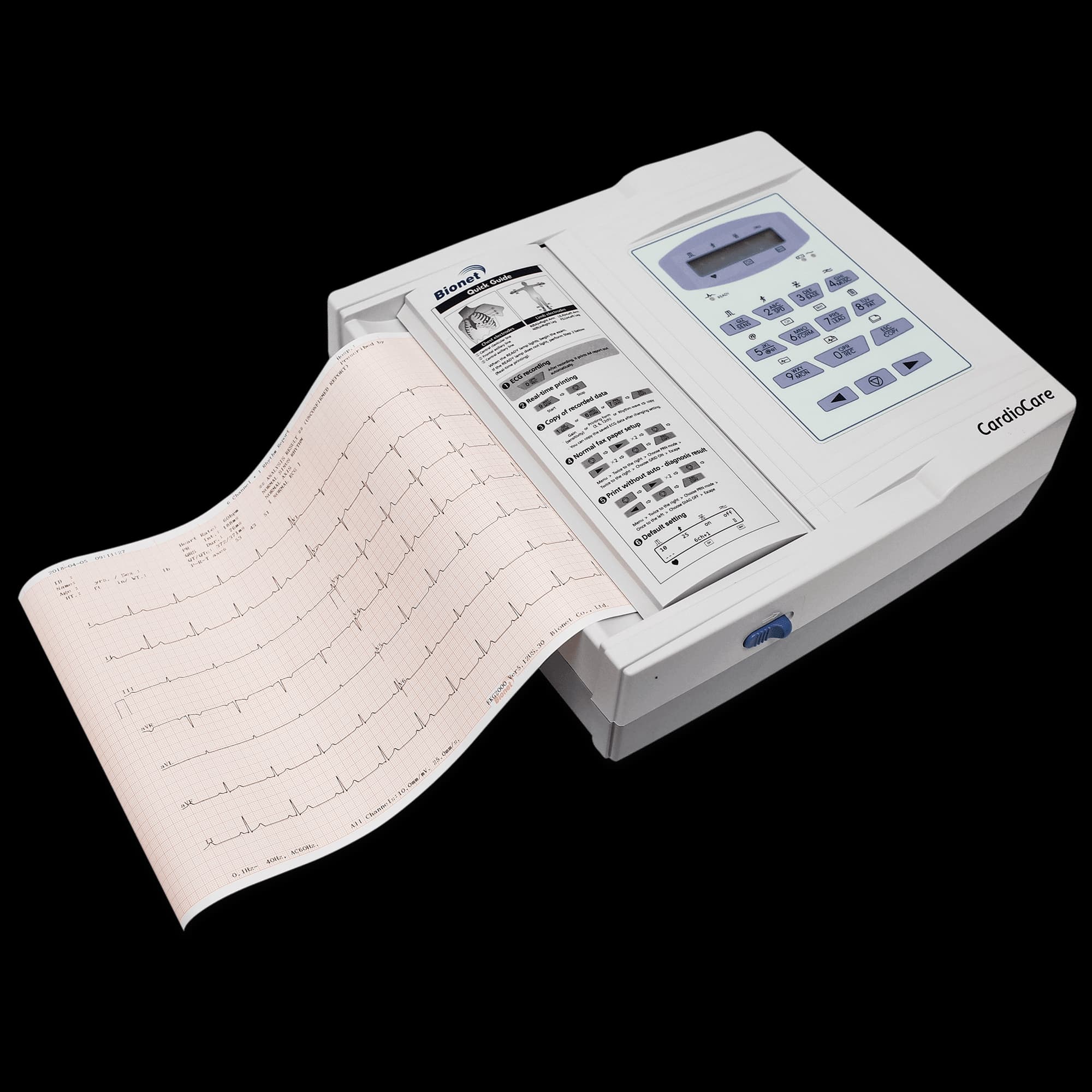

The CardioCare 2000 is a 12-channel interpretive ECG machine designed for resting, offering simultaneous 12-lead acquisition, A4-size printing, and PC connectivity (via LAN/RS-232) for data management. It features a thermal print head, a 30–300 bpm heart rate range, and advanced interpretation algorithms
Specifications
| Key Features | ECG Leads: 10 lead, 12-channel simultaneous.Recording Channels: 3, 6, 12 channel and 1 channel (60 sec).Input Impedance: ≥ 50MΩ.Frequency Response: 0.05 ~ 150 Hz.Sensitivity: 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV.Paper Speed: 12.5, 25, 50 mm/sec.Printer Resolution: 8 dot/mm (0.125mm pitch).Paper Size: A4/Letter (215mm x 297mm).Dimensions: Approximately 296 × 305.5 × 92.5 mm.Weight: Approximately 2.98 kg (6.57 lbs).Power Requirement: 100-240 VAC, 50/60Hz, 60W max.Battery: Optional rechargeable battery (approx. 1 hour usage) |
|---|---|
| Functionality | Interpretation: Based on advanced Minnesota code.PC Interface: RS-232 and LAN connectivity.Data Management: Includes Free ECG PC software (EKG-Plus II).Safety: Class 1, Type BF; Defibrillation and ESU protected. |
